Output signal

10MHz

Output electric level

sine wave

Accuracy

＜3E-11

Short term stability

＜2E-11/1S＜8E-12/10S＜2E-12/100S

1E-11/1S5E-12/10S1E-12/100S

Phase Noise (SSB)

@1Hz

＜-100dBc/Hz

＜-105dBc/Hz

@10Hz

＜-130dBc/Hz

＜-135dBc/Hz

@100Hz

＜-140dBc/Hz

＜-150dBc/Hz

@1KHz

＜-150dBc/Hz

＜-155dBc/Hz

@10KHz

＜-155dBc/Hz

＜-160dBc/Hz

@100KHz

＜-157dBc/Hz

＜-162dBc/Hz

Frequency drifting

＜3E-12/day, ＜5E-11/month

Power consumption (+24VDC)

Steady state consumption ≤17W@25℃, MAX. Consumption ≤50W full temperature range

Power supply

+24Vdc (+22~28V)

Warm up time (normal temp.)

≤5min lock

Repeatability

≤2E-11

Frequency Adjustment range

≥2E-9 (mechanical adjustment)

≥2E-9 (digital adjustment)

11PPS input synchronization precision

≤100ns

1PPS input discipline accuracy

Average accuracy ＜1E-12/day

Operating temperature

-20℃~+65℃

Temperature accuracy

＜5E-10

＜3E-10

Storage temperature

-40℃~+70℃

MTBF

200,000 hours

Connector

DB-15, SMA

External size

147.3*101.9*32 (mm)

Weight

≤0.9kg

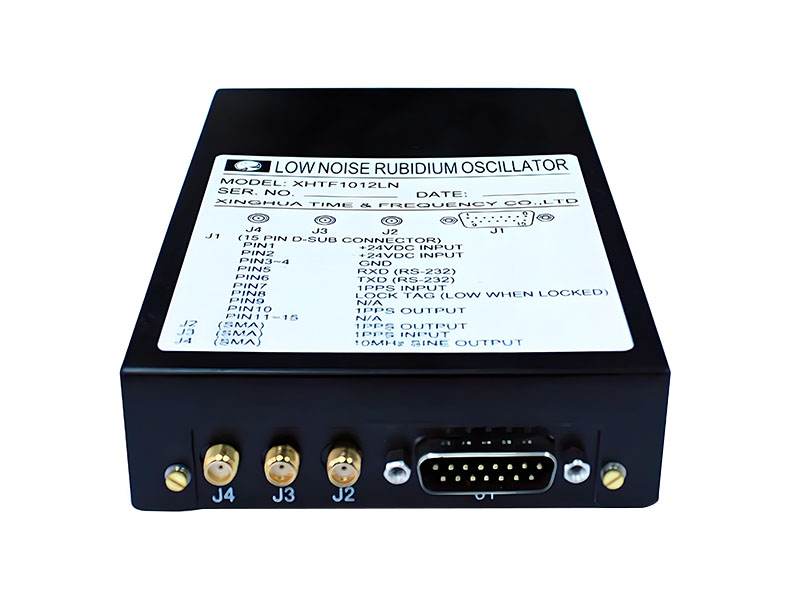

1

+24V

9

N/A

2

+24V

10

1PPS output

3

GND

11

N/A

4

GND

12

N/A

5

RXD

13

N/A

6

TXD

14

N/A

7

1PPS input

15

N/A

8

Lock identification

J1:

DB-15ZJ

J2:

SMA 1PPS output

J3:

SMA 1PPS input

J4:

SMA 10MHz sine wave output
