Output voltage

HCMOS electric level/sine wave

Accuracy

＜5E-11

Short term stability

＜3E-11/1S＜1E-11/10S＜3E-11/100S

＜1.5E-11/1S＜5E-12/10S＜1.5E-12/100S

PhaseNoise(SSB)

@10Hz

＜-100dBc / Hz

@100Hz

＜-130dBc / Hz

@1KHz

＜-140dBc / Hz

Frequency drifting

＜5E-12/day, ＜5E-11/month

Steady state voltage (normal temp.)

≤7.8@12V, Max. Current 1.75A

Power supply

+11.4~+11.8Vdc

Warm up time (normal temp.)

≤7min lock

Repeatability

≤2E-11

Adjustment range

≥2E-9 (internal mechanical adjustment)≥2E-9 (external mechanical adjustment)

1PPS input sync. Function (optional)

1pps synchronization: ≤±50nsFrequency accuracy: ≤1E-12/day (after one day discipline)

Operating temperature

-20℃~+50℃

-40℃~+60℃

Temperature accuracy

＜6E-10 ~ ＜2E-9

Storage temperature

-40℃~+70℃

MTBF

100,000 hours

Connector

DB-9, SMA

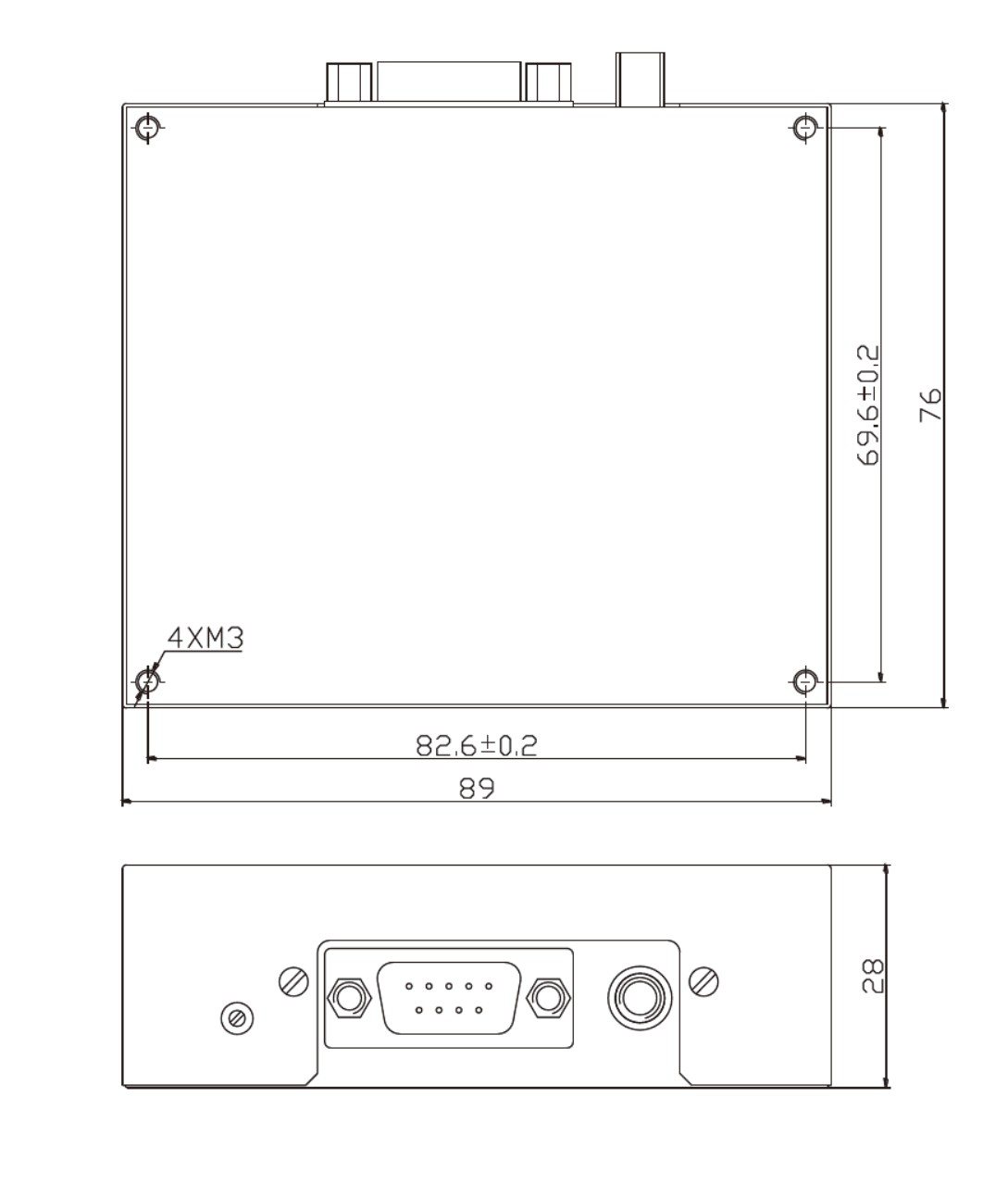

External size

89*76*28 (mm) (190cc)

Weight

≤0.3kg

1

Lock identification

6

NC or 1PPS input

2

GND

7

+12V

3

NC or RXD

8

NC or 1PPS output

4

NC or TXD

9

Lock identification

5

External regulation
