Rated frequency f0

√ 70MHZ, 124.8MHz, 140MHz

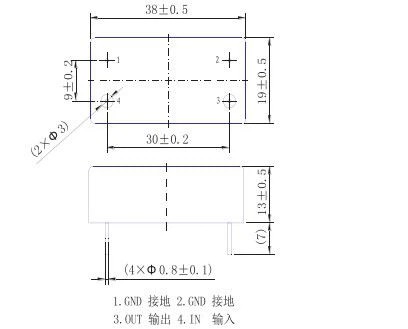

External size

38mm*19mm*13mm

Weight

30g (Max.)

Operating temperature

-55℃ ~+85℃

Storage temperature

-55℃ ~+85℃

Band width (BW3)

√ ≥200KHz

Band fluctuation (ar)

√ ≤1dB (Measured band ripple)

Insert loss (IL)

√ ≤6dB

Stopband width (BW60)

√ ≤550kHz

Stopband loss

√ ≥60dB

Recommend input voltage range

□-40dBm ~ 0dBm

Input / Output impedance

□50Ω
