Rated frequency f0

√ 10MHZ, 50MHz, 100MHz

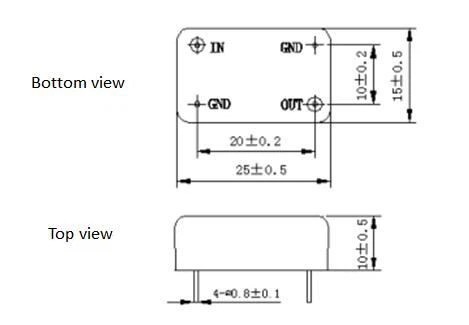

External size

25mm*15mm*10mm

Weight

30g (Max.)

Operating temperature

-55℃ ~+85℃

Storage temperature

-55℃ ~+85℃

Central frequency deviation

√ ≤±4KHz

Band width (BW1)

√ ≤10kHz

Insert loss (IL)

√ ≤4dB

Band fluctuation

√ ≤1dB (Measured in band ripple)

SWR

√ ≤2 (@rated frequency f0 )

Stopband attenuation

√ ≥70dB (@rated frequency f0 ±1MHz~±10MHz)

Recommend input voltage range

□-40dBm ~ 0dBm

Input / Output impedance

□50Ω/50Ω
