Nominal Frequency

－

10.000

MHz

Supply voltage

－

11.4

12

12.6

V

Package size

－

36×27×13

mm3

Power consumption

During warm up

－

－

4.2

Watts

Steady state @ 25℃

－

－

1.8

Watts

Freq. stability vs. load

RL±5％

－

－

±2

ppb

Freq. stability vs. supply voltage

VDD±5％

－

－

±2

ppb

Freq. stability vs. temperature

Referenced to 25℃ (-40 to +70°C )

－

－

±5

ppb

Short Term Stability

@25℃

－

－

2E-12

/1s

Freq. retrace

Power on after 1h, referenced to Freq. before power off 24h.

－

－

±10

ppb

Initial tolerance

Vcont=+2.5V@25℃

－

－

±50

ppb

Aging

per day

After 30 days of continues operation

－

－

±0.5

ppb

per 1st year

－

－

±50

ppb

per 10 years

－

－

±0.3

ppm

Operating temperature range

－

-40

－

70

℃

Warm up time

@ 25°C △F/F≦ ±0.5ppm (Based on Freq. After 1h)

－

－

3

min

Output wave

－

SINWAVE

－

Output power

VDD=12V

10

12

14

dBm

Output load

－

－

50

－

Ω

Harmonics

－

－

－

-30

dBc

Spurious

－

－

－

-80

dBc

Pull range

Vcont=0 to 5V

±0.5

－

±1.2

ppm

Linearity

－

－

－

±10

%

Slope

－

positive

－

Control voltage

－

0

2.5

5

V

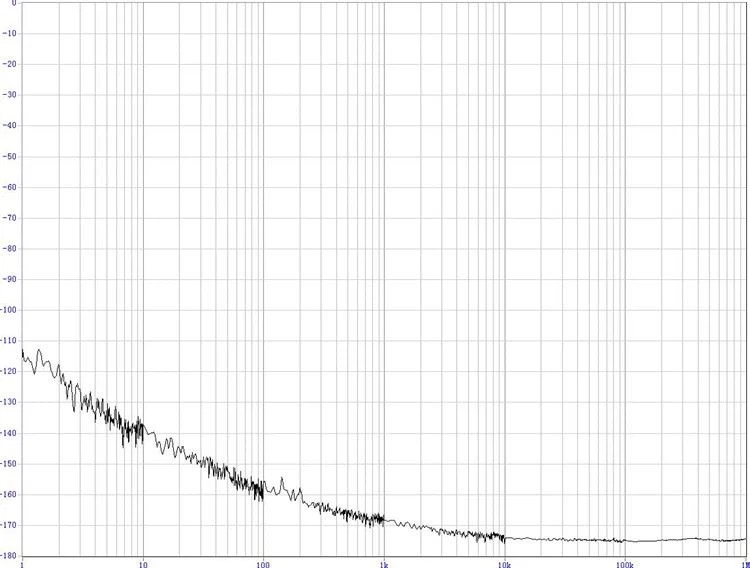

Phase noise

@ 1Hz offset

@ 10MHz

－

-110

-105

dBc/Hz

@ 10Hz offset

－

-138

-135

dBc/Hz

@ 100Hz offset

－

-158

-155

dBc/Hz

@ 1kHz offset

－

-168

-165

dBc/Hz

@ 10kHz offset

－

-172

-170

dBc/Hz

@ 100kHz offset

－

-172

-170

dBc/Hz
