Cut

□SC

Vibration Mode

□Fund

Load Capacitance (CL)

□12pF

Frequency Tolerance (FL)

√±5ppm (90℃) max

Turning Point (UTP )

√95℃±7℃

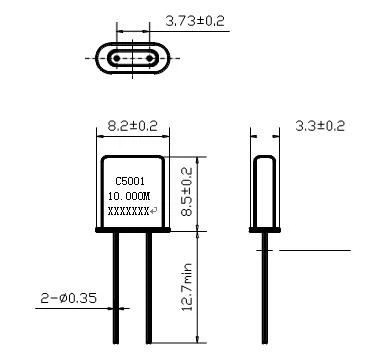

Holder

□HC-45U

Storage Temperature

□-55℃～125℃

Aging

□≤±2 ppb/day (after 30 days)

□≤±0.2 ppm/year (after 30 days)

Drive Level (PWR)

□100μW

Series Resistance (RR)

√25Ω max

Motional Capacitance (C1)

□3.6fF nominal

Shunt Capacitance (C0)

□2.1pF

Quality Factor (Q)

ó350k

DLD Test (DLD2)

√≤5Ω (90℃，1.0uW～300 uW)

G-sensitivity

□-

□-

Marking

1. Part Number 2. Frequency 3. Serial Number

Environmental

Shock:

Vibration:

Remarks

√Test 100%, □Reference

Made

Ding qinghua

6/4/2018

Checked

Wang jingtao

6/4/2018

Approved

Jiang songtao

6/4/2018

Mark

QTY

Change No.

Sign

Date
