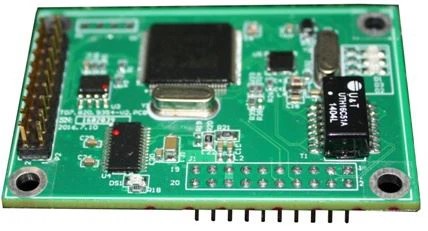

NET-10M100M Network Timing Board

The NET-10M/100M NIC module is a protocol conversion module for serial port (TTL) and 10M/100M Ethernet. It can connect serial port device (TTL) to 10M/100M Ethernet and realize NTP timing function. It can be applied to network timing and network monitoring.

Inquiry Now →

Features

● Modular design, small size and easy to use;

● It can perform NTP timing and complete protocol conversion (transparent transmission) from serial port to Ethernet port;

● Applicable to ground and vehicle environment requirements;

● Suitable for wide temperature working environment.

Specifications

Electrical Interface
Power Supply	+5V power input, maximum power consumption <2W
Electrical Interface	Provide 1 TTL level control serial port (default baud rate: 115200)
Main Functions
(1) Convert the serial port to a 10M/100M Ethernet port;
(2) NTP network timing protocol: NTP V4, in line with RFC5905 (time system UTC time);
(3) NTP network timing, the accuracy of the intra-area (first-class exchange) is better than 10ms.
Structure
Installation Method
(1) The module's 4×φ3.5 positioning hole realizes module installation;(2) It is electrically connected to the outside by using a 10×2×2.54mm pitch double-row pin;
Dimension
60.2mm×40.2mm (Tolerance: ±2.0mm)
Installation size
54.2mm×34.2mm (Tolerance: ±1.0mm)
